| 구 분 |
SW62A-1005-E11 |
SW62A-1251-E11 |
SW62A-1005-PC6 |

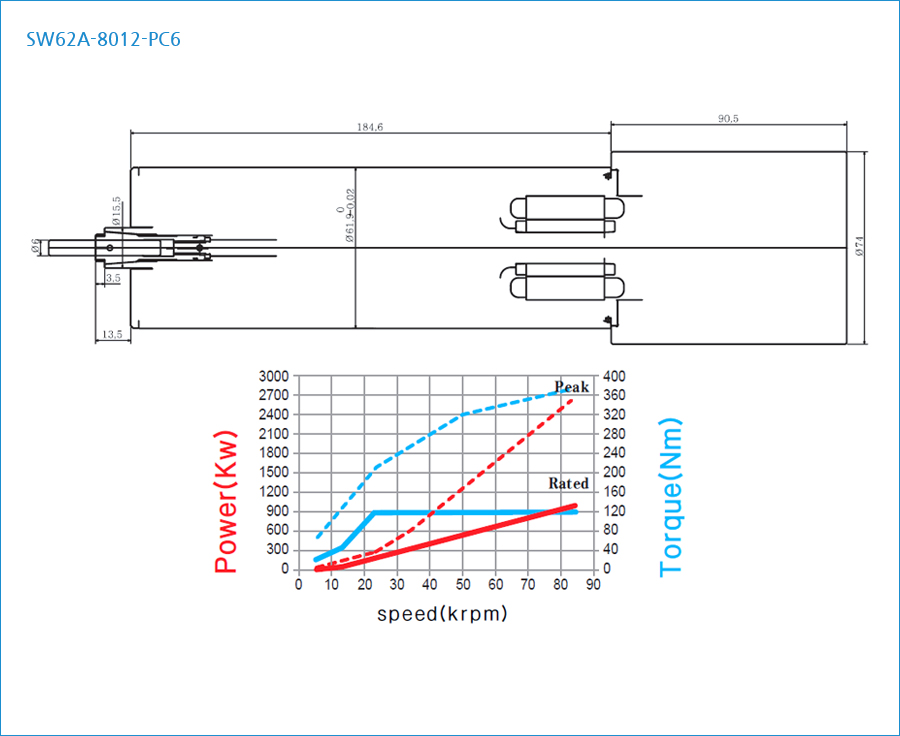

SW62A-8012-PC6 |
| Housing diameter(Ø) |
62 |
62 |
62 |
62 |
| Housing material |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
| Power(S1)kw |
0.5 |
1 |
0.5 |
1.2 |
| Speed(rpm) |
100,000 |
125,000 |
100,000 |
80,000 |
| Frequency(Hz) |
1,667 |
2,084 |
1,667 |
1333 |
| Torque(Nm) |
|
|
|
0.12 |
| Current(A) |
1.5 |
2.4 |
1.5 |
7 |
| Motor poles |
2 |
2 |
2 |
2 |
| Tool change |
manual |
manual |
auto |
auto |
| Tool interface |
ER11 |
ER11 |
pc6 |
pc6 |
| option |
× |
× |
× |
Ⅹ |
| Cooling system |
water |
water |
water |
water |
| Bearing lubrication |
air bushing |
air bushing |
air bushing |
air bushing |
| Weight(kg) |
3.5 |
3.5 |
4 |
4 |
|
