| 구 분 |

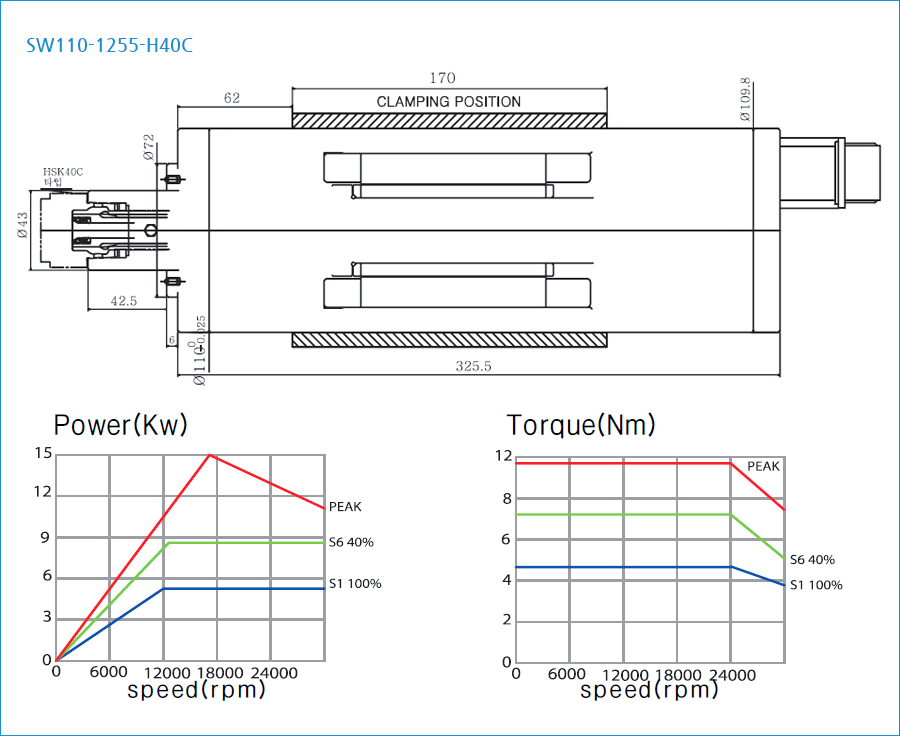

SW110-1255-H40C |
SW110-3095-BB30ECO |
SW110-4055-H40EO |
| Housing diameter(Ø) |
110 |
110 |
110 |
| Housing material |
Stainless steel |
Stainless steel |
Stainless steel |
| Power(S1)kw |
5.5 |
9.5 |
5.5 |
| Speed(rpm) |
12,000 |
30,000 |
40,000 |
| Frequency(Hz) |
400 |
1,000 |
1,334 |
| Torque(Nm) |
4.5 |
5 |
4.63 |
| Current(A) |
26.26 |
20 |
19 |
| Motor poles |
4 |
4 |
4 |
| Tool change |
manual |
auto |
auto |
| Tool interface |
HSK C40 |
BBT 30 |
HSK E40 |
| Tool clamping force(nmax) |
|
6,000 |
6,800 |
| option |
flange |
oil-mist system, encoder, flange |
oil-mist system, Flange |
| Cooling system |
water / oil |
water / oil |
water / oil |
| Bearing lubrication |
grease |
oil-mist |
oil-mist |
| Weight(kg) |
18 |
25 |
25 |
|
