| 구 분 |

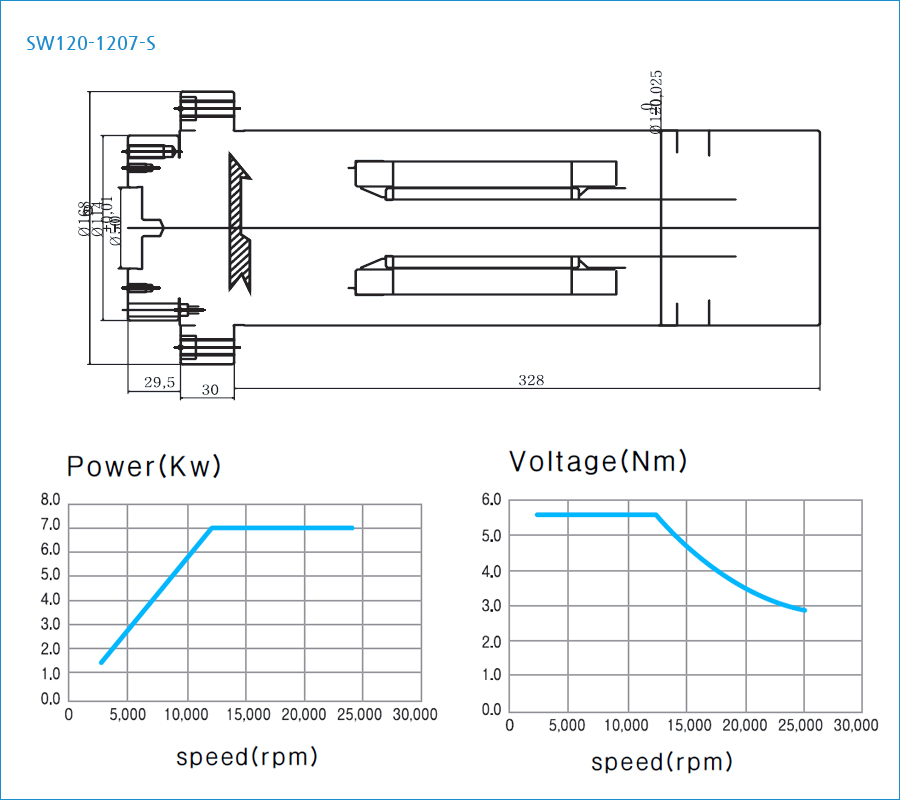

SW120-1207-S |
SW150-3618-SO |
SW170-2425-SECO |
| Housing diameter(Ø) |
120 |
150 |
170 |
| Housing material |
Stainless steel |
Stainless steel |
Stainless steel |
| Power(S1)kw |
7 |
18 |
25 |
| Speed(rpm) |
12,000 |
36,000 |
24,000 |
| Frequency(Hz) |
400 |
1,200 |
800 |
| Torque(Nm) |
5.7 |
7.27 |
22.1 |
| Current(A) |
33 |
36.7 |
54 |
| Motor poles |
4 |
4 |
4 |
| Tool change |
manual |
manual |
manual |
| Tool interface |
straight |
straight |
straight |
| option |
flange |
oil-mist system |
oil-mist system, Encoder |
| Cooling system |
water / oil |
water / oil |
water / oil |
| Bearing lubrication |
grease |
oil-mist |
oil-mist |
| Weight(kg) |
22 |
45 |
65 |
|
