Grinding Spindles Home > Product > Grinding Spindles


SW180-6085-R

본문


SW110-WH
work head C40
SW120-8014-F
finish grinding
SW100-284-R
rough grinding
SW180-6085-R
rough grinding motor

Specification
Sortation SW110-WH SW120-8014-F SW100-284-R SW180-6085-R
Housing diameter(Ø) 110 120 100 180
Housing material Stainless steel Stainless steel Stainless steel Stainless steel
Power(S1)kw   1.4   8.5
Speed(rpm) 5,000 8,000 6,000 6,000
Frequency(Hz)   267   200
Torque(Nm)   1.7   14.1
Current(A)   4.1   20
Motor poles   4   4
Tool change manual manual manual manual
Tool interface MT5 straight straight straight
option 유압척 지그 × × ×
Cooling system × × × water
Bearing lubrication grease grease grease grease
Weight(kg)

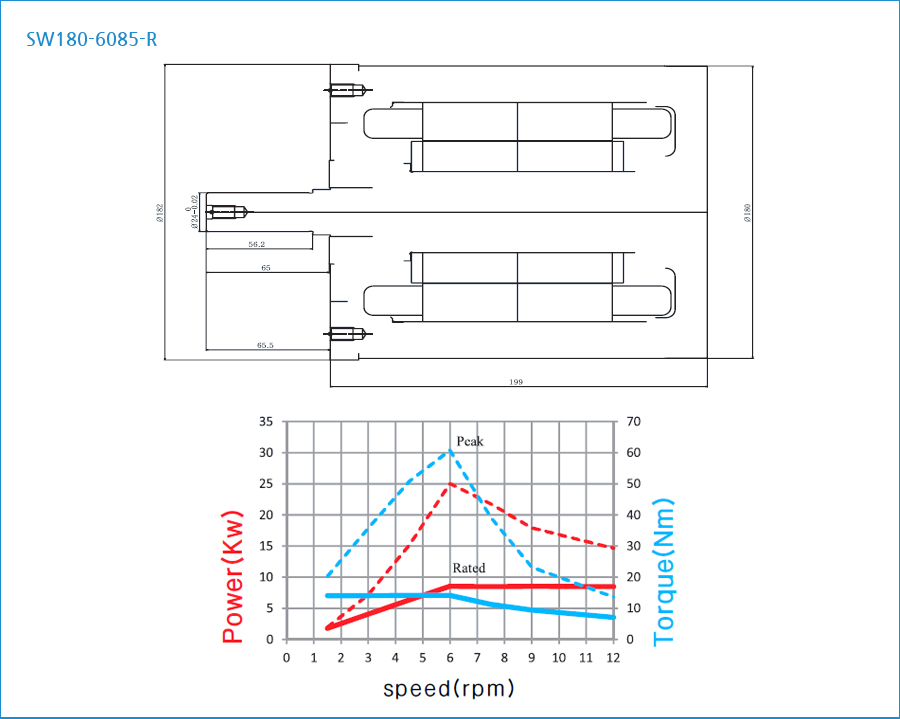

Floor plan
