Grinding Spindles Home > Product > Grinding Spindles


SW120-5112-SO

본문


SW120-4518-SO
SW120-4575-SO
SW120-5112-SO

Specification
Sortation SW120-4575-SO SW120-4575-SO SW120-6010-SO
Housing diameter(Ø) 120 120 120
Housing material Stainless steel Stainless steel Stainless steel
Power(S1)kw 18(S6) 7.5(S6) 12(S6)
Speed(rpm) 45,000 45,000 51,000
Frequency(Hz) 1,500 750 1,700
Torque(Nm) 3.2 1.62 2.1
Current(A) 52 25 39
Motor poles 4 2 4
Tool change manual manual manual
Tool interface straight straight straight
option oil-mist system oil-mist system oil-mist system
Cooling system water / oil water / oil water / oil
Bearing lubrication oil-mist oil-mist oil-mist
Weight(kg) 22 22 22

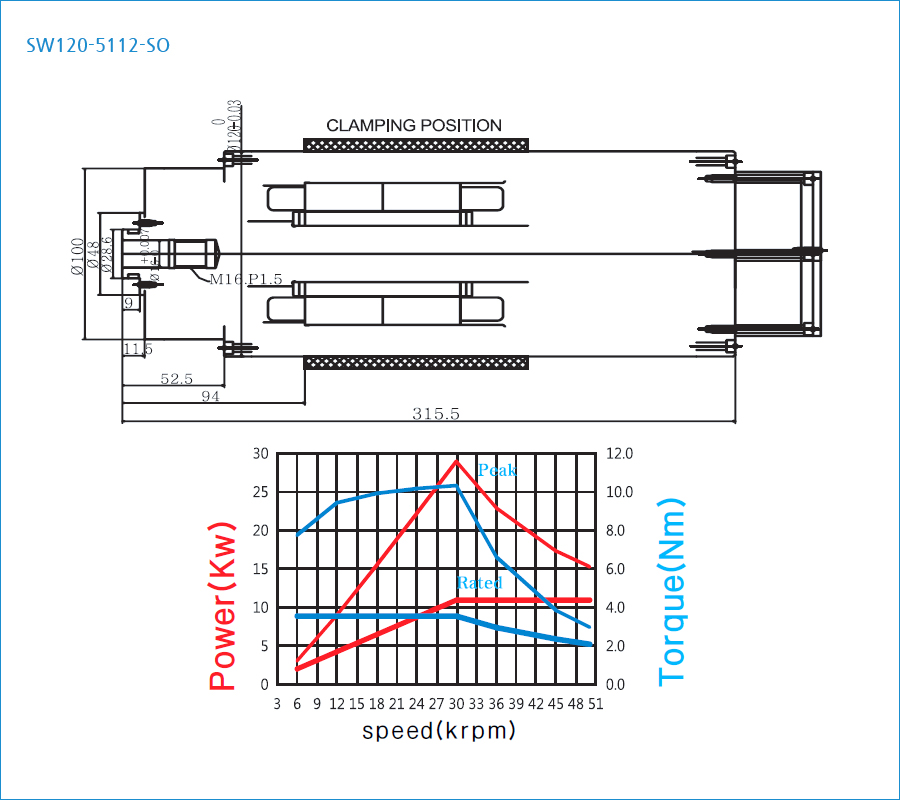

Floor plan
