Grinding Spindles Home > Product > Grinding Spindles


SW110-2407-T

본문

Edge grinding or multi grinding spindles

SW80-1613-S
Edge grinding
SW80-3033-S
Edge grinding
SW110-1207-T
Edge grinding
SW110-2407-T
Edge grinding

Specification
Sortation SW80-1613-S SW80-3033-S SW110-1207-T SW110-2407-T
Housing diameter(Ø) 80 80 110 110
Housing material Stainless steel Stainless steel Stainless steel Stainless steel
Power(S1)kw 1.3 3.3 7 7
Speed(rpm) 16,000 30,000 12,000 24,000
Frequency(Hz) 533 1,000 400 800
Torque(Nm) 1 1.1 5.7 2.9
Current(A) 5 13.1 33 25
Motor poles 4 4 4 4
Tool change manual manual manual manual
Tool interface straight straight taper taper
option × × flange flange
Cooling system water / oil water / oil water / oil water / oil
Bearing lubrication grease grease grease grease
Weight(kg) 6.5 6.5 18 18

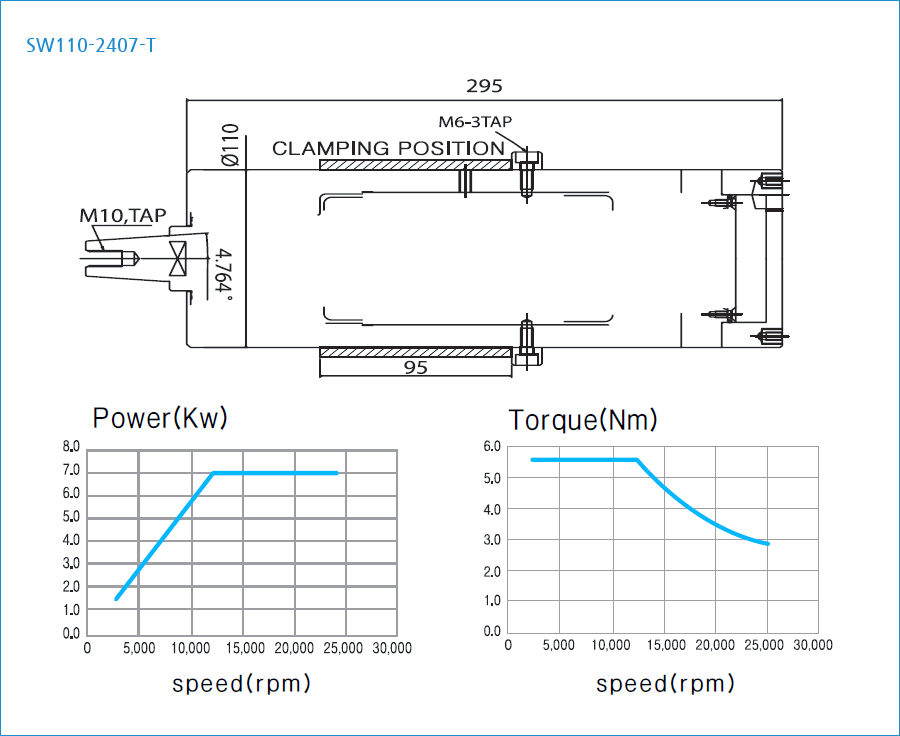

Floor plan
