Grinding Spindles Home > Product > Grinding Spindles


SW110-1255-TT

본문


SW110-1255-T
SW110-1255-TT
SW110-1207-T

Specification
Sortation SW110-1255-T SW110-1255-TT SW110-1207-T
Housing diameter(Ø) 110 110 110
Housing material Stainless steel Stainless steel Stainless steel
Power(S1)kw 5.5 5.5 7
Speed(rpm) 12,000 12,000 12,000
Frequency(Hz) 400 400 400
Torque(Nm) 4.5 4.5 5.7
Current(A) 26.26 26.26 33
Motor poles 4 4 4
Tool change manual manual manual
Tool interface taper taper taper
option × front and rear rotary joint
Cooling system water / oil water / oil water / oil
Bearing lubrication grease grease grease
Weight(kg) 18 20 18

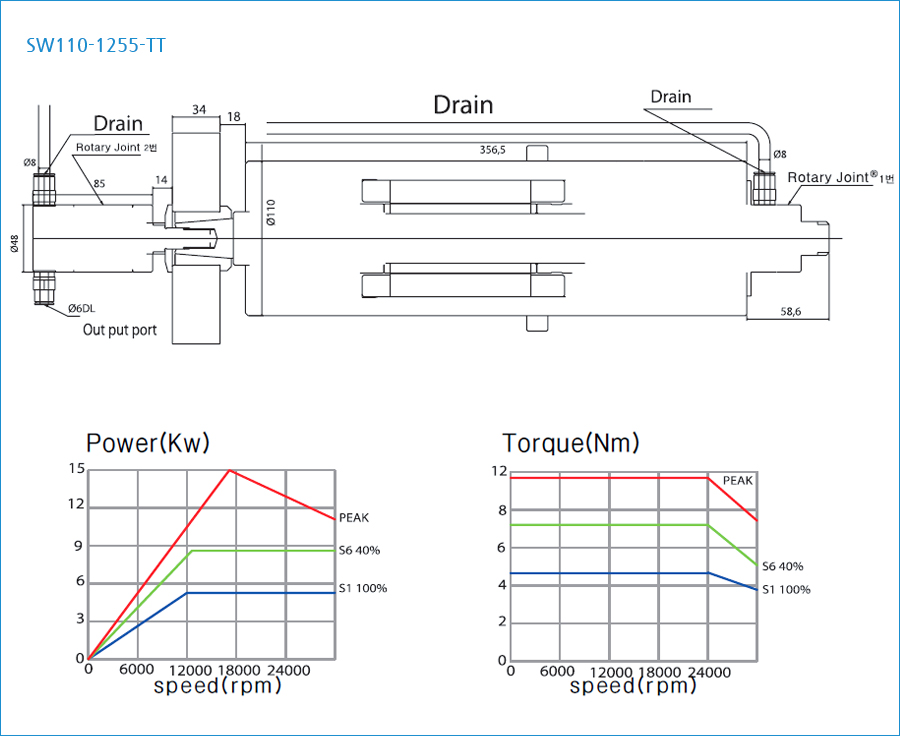

Floor plan
