Grinding Spindles Home > Product > Grinding Spindles


SW120-1207-S

본문


SW120-1207-S
SW150-3618-SO
SW170-2425-SECO

Specification
Sortation SW120-1207-S SW150-3618-SO SW170-2425-SECO
Housing diameter(Ø) 120 150 170
Housing material Stainless steel Stainless steel Stainless steel
Power(S1)kw 7 18 25
Speed(rpm) 12,000 36,000 24,000
Frequency(Hz) 400 1,200 800
Torque(Nm) 5.7 7.27 22.1
Current(A) 33 36.7 54
Motor poles 4 4 4
Tool change manual manual manual
Tool interface straight straight straight
option flange oil-mist system oil-mist system, Encoder
Cooling system water / oil water / oil water / oil
Bearing lubrication grease oil-mist oil-mist
Weight(kg) 22 45 65

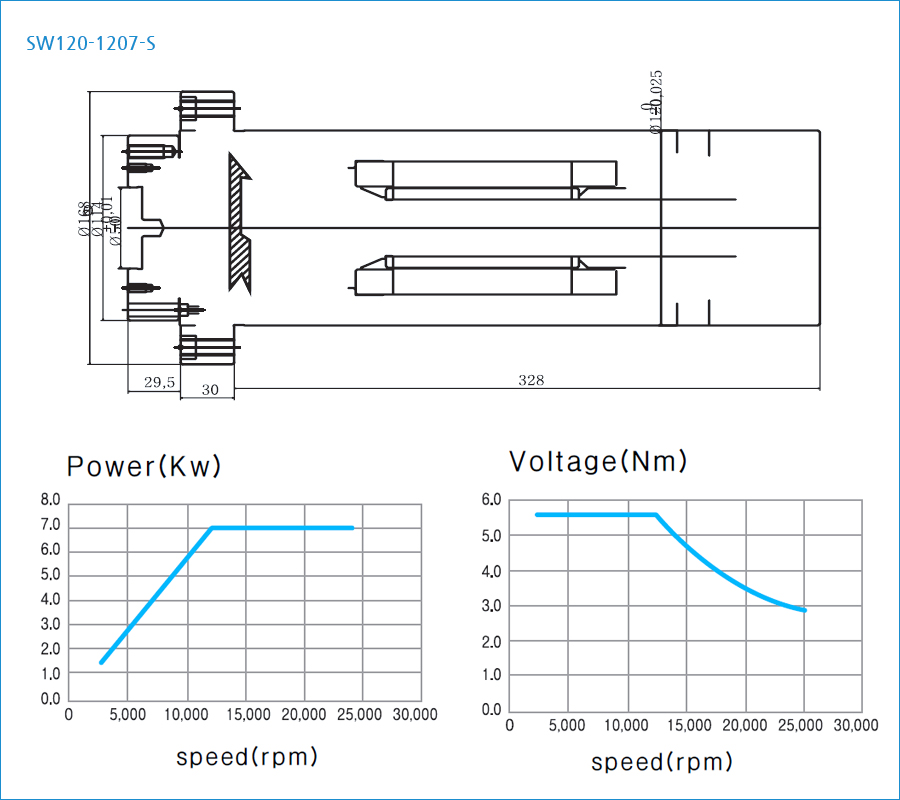

Floor plan
