Grinding Spindles Home > Product > Grinding Spindles


SW100-7004-SOT

본문


SW100-3009-SO
SW100-6002-SO
SW100-6005-SO
SW100-7004-SOT

Specification
Sortation SW100-3009-SO SW100-6002-SO SW100-6005-SO SW100-7004-SOT
Housing diameter(Ø) 100 100 100 100
Housing material Stainless steel Stainless steel Stainless steel Stainless steel
Power(S1)kw 9(S6) 2 5(S6) 4
Speed(rpm) 30,000 60,000 60,000 70,000
Frequency(Hz) 1,000 2,000 1,000 2,334
Torque(Nm) 2.5 0.3 0.65 0.5
Current(A) 27 8.2 14 15
Motor poles 4 4 2 4
Tool change manual manual manual manual
Tool interface straight straight straight straight
option oil-mist system oil-mist system oil-mist system oil-mist system, center hole(rotary joint)
Cooling system water / oil water / oil water / oil water / oil
Bearing lubrication oil-mist oil-mist oil-mist oil-mist
Weight(kg) 18 18 18 18

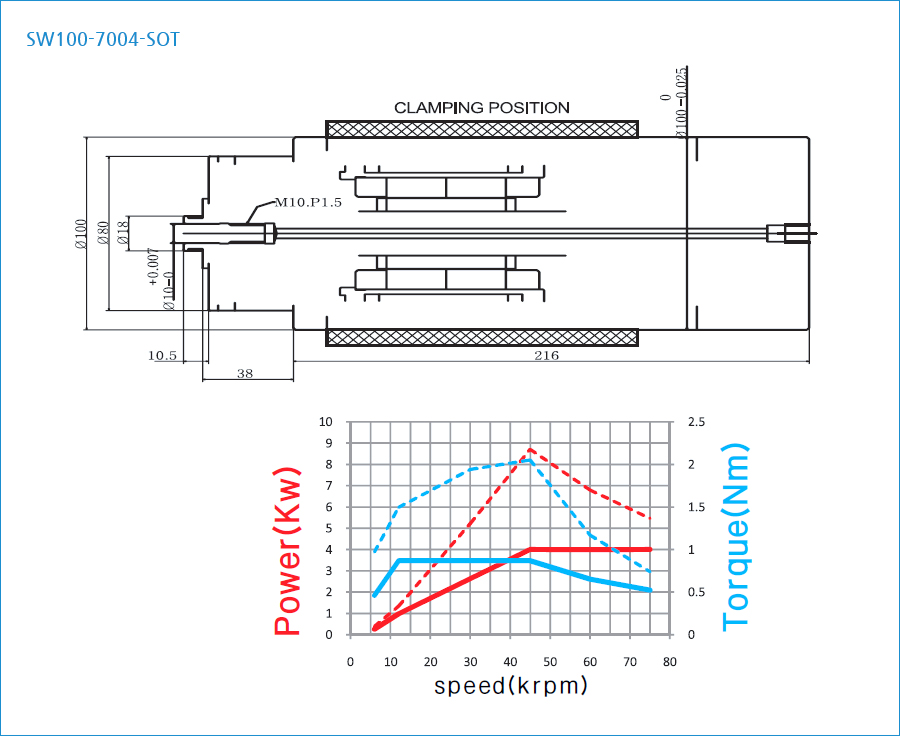

Floor plan
