Grinding Spindles Home > Product > Grinding Spindles


SW90-3033-B

본문


SW90-5025-SO
SW90-3033-B
SW90-4033-MT1
SW90-3033-MT2

Specification
Sortation SW90-5025-SO SW90-3033-B SW90-4033-MT1 SW90-3033-MT2
Housing diameter(Ø) 90 90 90 90
Housing material Stainless steel Stainless steel Stainless steel Stainless steel
Power(S1)kw 2.5 3.3 3.3 3.3
Speed(rpm) 50,000 30,000 40,000 30,000
Frequency(Hz) 1,667 1,000 1,334 1,000
Torque(Nm) 1.1 1.1 1.1 1.1
Current(A) 13.1 13.1 13.1 13.1
Motor poles 4 4 4 4
Tool change manual manual manual manual
Tool interface straight Cylinderical Bar MT1 MT2
option oil-mist system × × ×
Cooling system water / oil water / oil water / oil water / oil
Bearing lubrication grease grease grease grease
Weight(kg) 9 9 9 9

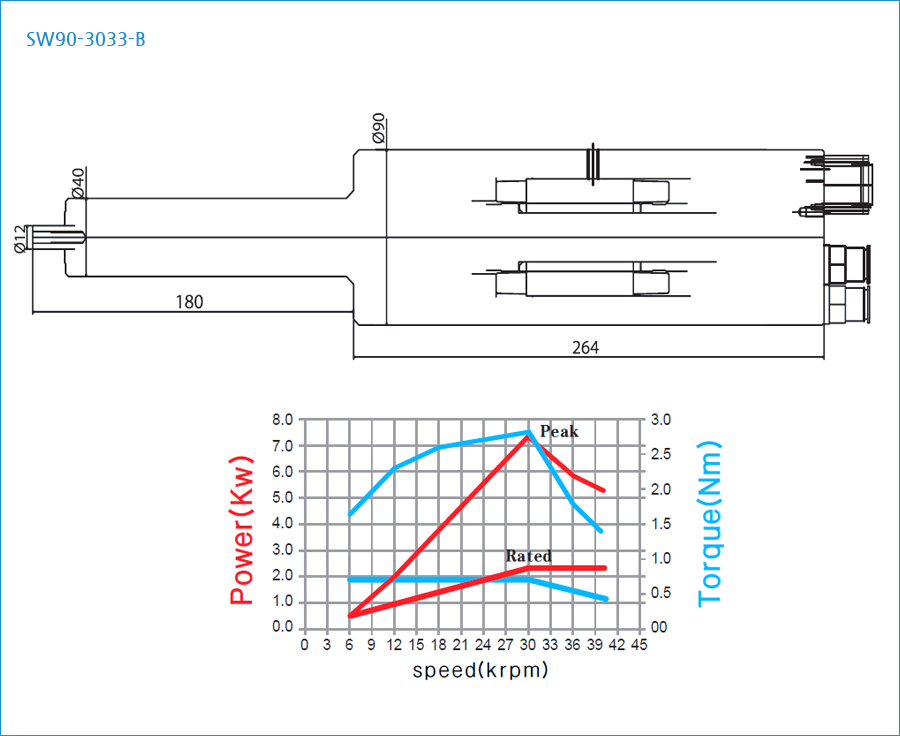

Floor plan
