Grinding Spindles Home > Product > Grinding Spindles


SW80-1205-S

본문


SW62-6014-PC6
SW80-1205-S
SW80-1613-S
SW80-3033-S

Specification
Sortation SW62-6014-PC6 SW80-1205-S SW80-1613-S SW80-3033-S
Housing diameter(Ø) 62 80 80 80
Housing material Stainless steel Stainless steel Stainless steel Stainless steel
Power(S1)kw 1.4 0.5 1.3 3.3
Speed(rpm) 60,000 12,000 16,000 30,000
Frequency(Hz) 1,000 400 533 1,000
Torque(Nm) 0.2 0.41 1 1.1
Current(A) 5.2 3 5 13.1
Motor poles 2 4 4 4
Tool change auto manual manual manual
Tool interface PC6 straight straight straight
option × × × ×
Cooling system water / oil air water / oil water / oil
Bearing lubrication grease grease grease grease
Weight(kg) 5 6.5 6.5 6.5

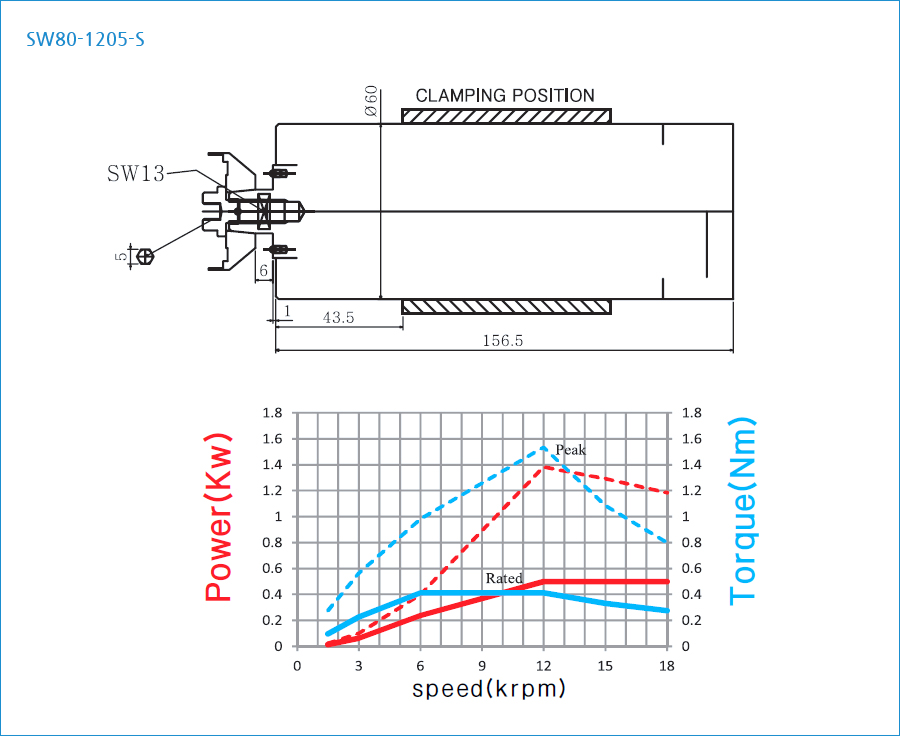

Floor plan
