Grinding Spindles Home > Product > Grinding Spindles


SW60-1507-T

본문


SW60-1507-T
SW60-4013-T
SW60-3001-S
SW60-3005-S

Specification
Sortation SW60-1507-T SW60-4013-T SW60-3001-S SW60-3005-S
Housing diameter(Ø) 60 60 60 60
Housing material Stainless steel Stainless steel Stainless steel Stainless steel
Power(S1)kw 0.7(S6) 1.3 1 0.5
Speed(rpm) 15,000 40,000 30,000 30,000
Frequency(Hz) 250 666 500 500
Torque(Nm) 0.3 0.32 0.31 0.41
Current(A) 3.6 2.4 5.1 3
Motor poles 2 2 2 2
Tool change manual manual manual manual
Tool interface taper taper straight straight
option × × × ×
Cooling system water / oil water / oil water / oil water / oil
Bearing lubrication grease grease grease grease
Weight(kg) 4 4 3.5 3.5

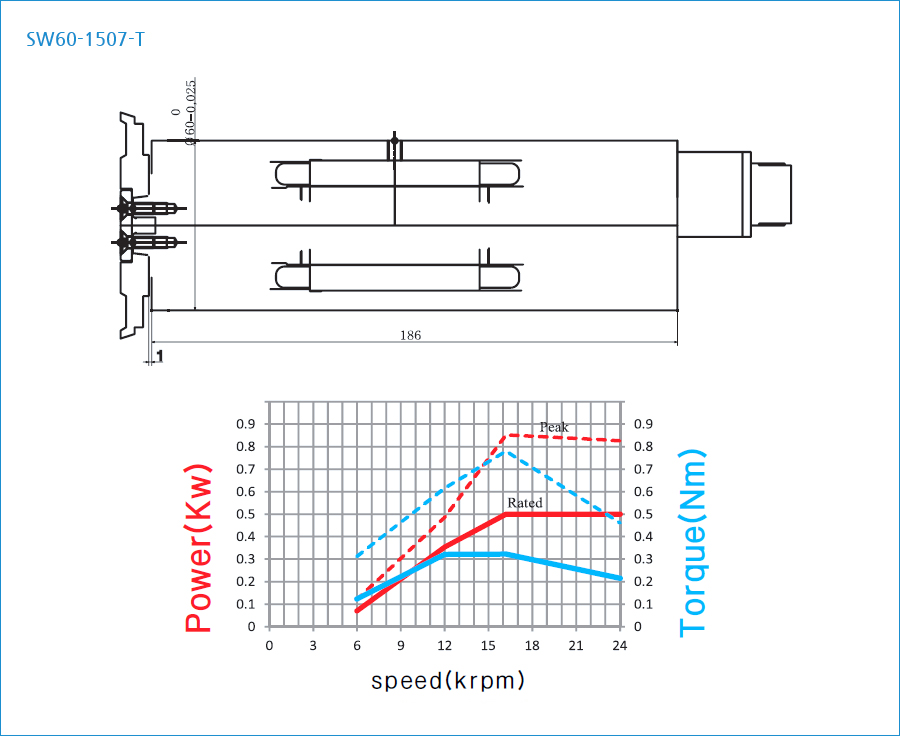

Floor plan
