Grinding Spindles Home > Product > Grinding Spindles


SW120-3010-SO

본문


SW120-1514-SO
SW120-3010-SO
SW120-3018-SO
SW120-4212-SO

Specification
Sortation SW120-1514-SO SW120-3010-SO SW120-3018-SO SW120-4212-SO
Housing diameter(Ø) 120 120 120 120
Housing material Stainless steel Stainless steel Stainless steel Stainless steel
Power(S1)kw 14(S6) 10 18(S6) 12(S6)
Speed(rpm) 15,000 30,000 30,000 42,000
Frequency(Hz) 500 1,000 1,000 1,400
Torque(Nm) 6.9 3.2 4.9 2.5
Current(A) 43 34 52 40
Motor poles 4 4 4 4
Tool change manual manual manual manual
Tool interface straight straight straight straight
option oil-mist system oil-mist system oil-mist system oil-mist system
Cooling system water / oil water / oil water / oil water / oil
Bearing lubrication oil-mist oil-mist oil-mist oil-mist
Weight(kg) 22 22 22 22

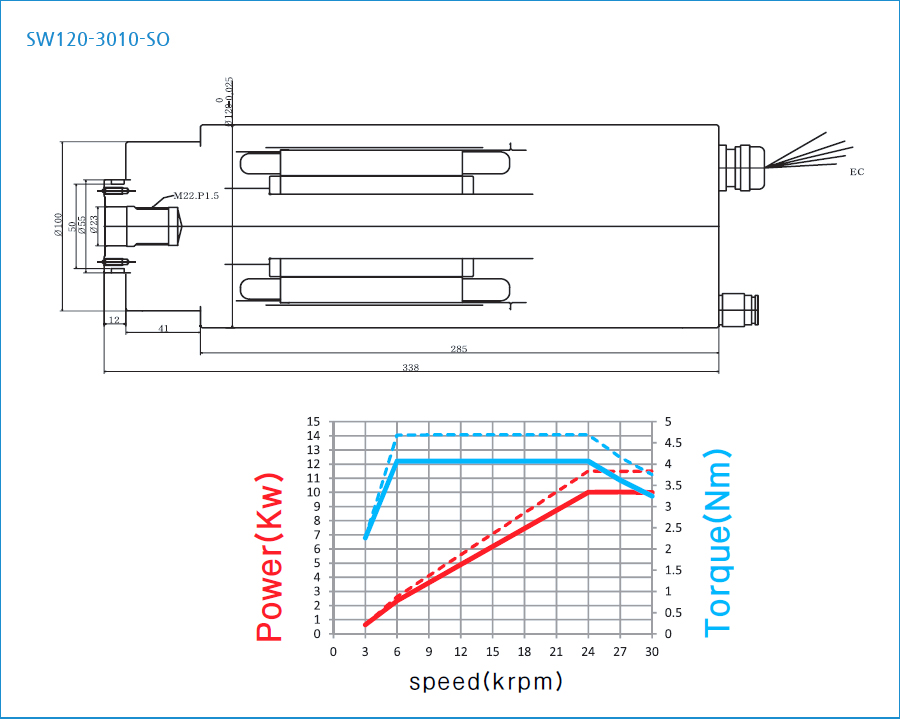

Floor plan
