| Sortation |
SW170-2425-H63AECOT |

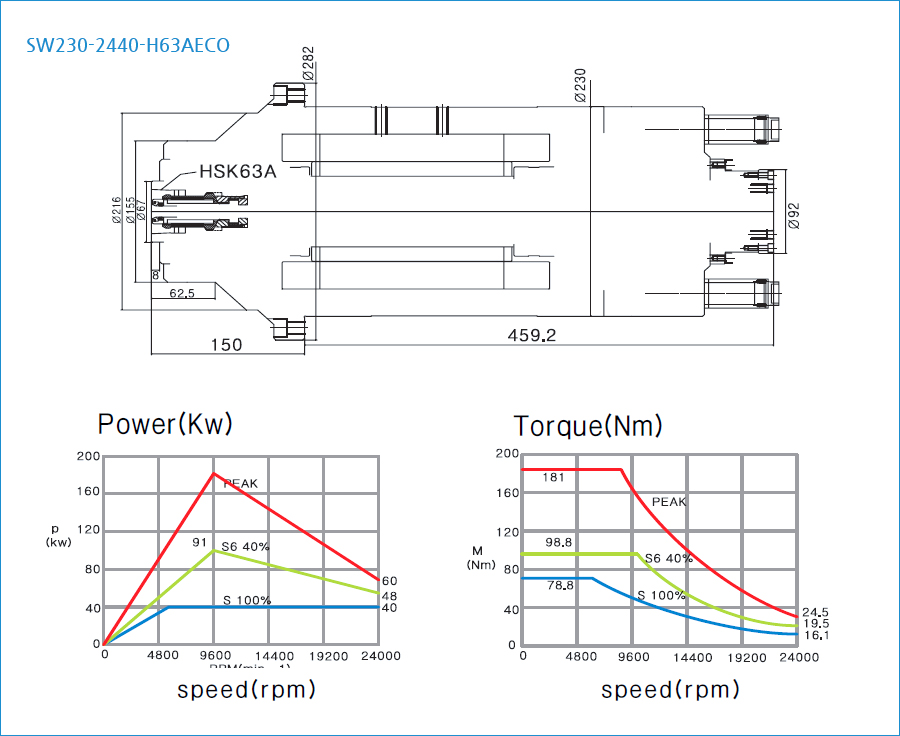

SW230-2440-H63AECO |
| Housing diameter(Ø) |
170 |
230 |
| Housing material |
Stainless steel |
Stainless steel |
| Power(S1)kw |
25 |
40 |
| Speed(rpm) |
24,000 |
24,000 |
| Frequency(Hz) |
800 |
800 |
| Torque(Nm) |
23 |
78.8 |
| Current(A) |
60 |
130 |
| Motor poles |
4 |
4 |
| Tool change |
auto |
auto |
| Tool interface |
HSK A63 |
HSK A63 |
| Tool clamping force(nmax) |
18,000 |
18,000 |
| option |
Encoder, oil-mist system, Center hole(rotary joint) |
Encoder, oil-mist system |
| Cooling system |
water / oil |
water / oil |
| Bearing lubrication |
oil-mist |
oil-mist |
| Weight(kg) |
68 |
135 |
|
