Manual Tool Change

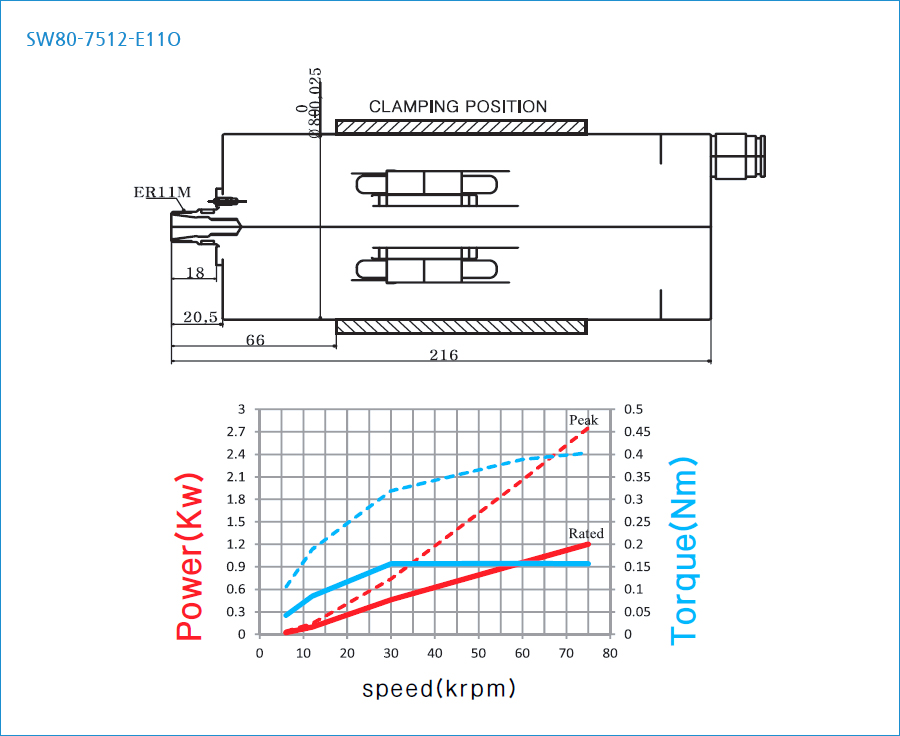

SW80-7512-E11O
본문
| |
| SW80-7512-E11O |
|
 |
|
|
| SW80-4033-E16 |
|
 |
|
|
| SW80-4033-H25E |
|
 |
|
|
| SW80-7555-H25EO |
|
 |
|
|
|
| |
|
| Sortation |
SW80-7512-E11O |
SW80-4033-E16 |
SW80-4033-H25E |
SW80-7555-H25EO |
| Housing diameter(Ø) |
80 |
80 |
80 |
80 |
| Housing material |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
| Power(S1)kw |
1.2 |
3.3 |
3.3 |
5.5 |
| Speed(rpm) |
75,000 |
40,000 |
40,000 |
75,000 |
| Frequency(Hz) |
1,250 |
1,334 |
1,334 |
2,500 |
| Torque(Nm) |
0.2 |
1.1 |
1.1 |
0.7 |
| Current(A) |
12 |
13.1 |
13.1 |
12 |
| Motor poles |
2 |
4 |
4 |
4 |
| Tool change |
manual |
manual |
auto |
auto |
| Tool interface |
ER11 |
ER16 |
HSK E25 |
HSK E25 |
| Tool clamping force(nmax) |
|
|
2,800 |
2,800 |
| option |
oil-mist system |
× |
× |
oil-mist system |
| Cooling system |
water / oil |
water / oil |
water / oil |
water / oil |
| Bearing lubrication |
oil-mist |
grease |
grease |
oil-mist |
| Weight(kg) |
6.5 |
6.5 |
10 |
10 |
|
| |
|
 |
|
| |
|
|
