| Engraving, Deburring, Milling, Drilling, Tapping |
Home > Product > Machine Tool Spindles |
|
|
|
| |
Manual Tool Change

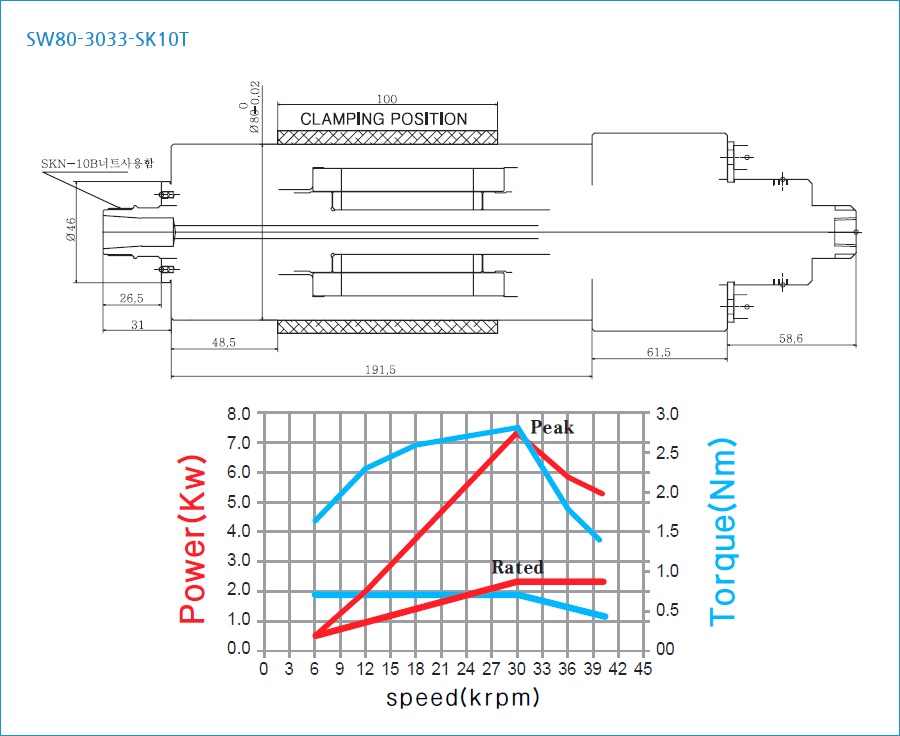

SW80-3033-SK10T
본문
| |
| SW80-3033-SK10T |
|
 |
|
|
| SW80-6033-SK10O |
|
 |
|
|
| SW80-7005-SK10O |
|
 |
|
|
| SW80-3033-SK13 |
|
 |
|
|
|
| |
|
| Sortation |
SW80-3033-SK10T |
SW80-6033-SK10O |
SW80-7005-SK10O |
SW80-3033-SK13 |
| Housing diameter(Ø) |
80 |
80 |
80 |
80 |
| Housing material |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
| Power(S1)kw |
3.3 |
3.3 |
5 |
3.3 |
| Speed(rpm) |
30,000 |
60,000 |
70,000 |
30,000 |
| Frequency(Hz) |
1,000 |
2,000 |
2,334 |
1,000 |
| Torque(Nm) |
1.1 |
0.5 |
0.69 |
1.1 |
| Current(A) |
13.1 |
12 |
19 |
13.1 |
| Motor poles |
4 |
4 |
4 |
4 |
| Tool change |
manual |
manual |
manual |
manual |
| Tool interface |
SK10 |
SK10 |
SK10 |
SK13 |
| option |
Center hole(rotary joint) |
oil-mist system |
oil-mist system |
× |
| Cooling system |
water / oil |
water / oil |
water / oil |
water / oil |
| Bearing lubrication |
grease |
oil-mist |
oil-mist |
grease |
| Weight(kg) |
6.5 |
6.5 |
6.5 |
6.5 |
|
| |
|
 |
|
| |
|
|
