Engraving, Deburring, Milling, Drilling, Tapping Home > Product > Machine Tool Spindles


Auto Tool Change

SW110-4055-H40EO

본문


SW110-1255-H40C
SW110-3095-BB30ECO
SW110-4055-H40EO

Specification
Sortation SW110-1255-H40C SW110-3095-BB30ECO SW110-4055-H40EO
Housing diameter(Ø) 110 110 110
Housing material Stainless steel Stainless steel Stainless steel
Power(S1)kw 5.5 9.5 5.5
Speed(rpm) 12,000 30,000 40,000
Frequency(Hz) 400 1,000 1,334
Torque(Nm) 4.5 5 4.63
Current(A) 26.26 20 19
Motor poles 4 4 4
Tool change manual auto auto
Tool interface HSK C40 BBT 30 HSK E40
Tool clamping force(nmax)   6,000 6,800
option flange oil-mist system, encoder, flange oil-mist system, Flange
Cooling system water / oil water / oil water / oil
Bearing lubrication grease oil-mist oil-mist
Weight(kg) 18 25 25

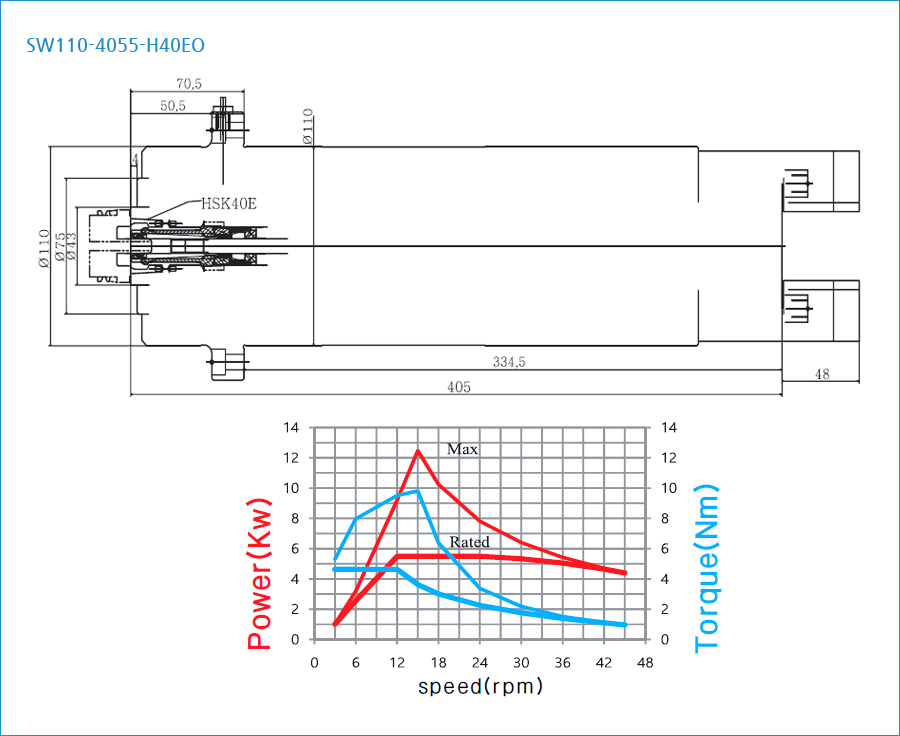

Floor plan
