Engraving, Deburring, Milling, Drilling, Tapping Home > Product > Machine Tool Spindles


Auto Tool Change

SW100-2455-H32ET

본문


SW100-3033-H32E
SW110-2455-H32ET
SW100-3055-H40EO

Specification
Sortation SW100-3033-H32E SW100-2455-H32ET SW100-3055-H40EO
Housing diameter(Ø) 100 100 100
Housing material Stainless steel Stainless steel Stainless steel
Power(S1)kw 3.3 5.5 5.5
Speed(rpm) 30,000 24,000 30,000
Frequency(Hz) 1,000 800 1,000
Torque(Nm) 1.1 4.62 1.78
Current(A) 13.1 26.26 18.1
Motor poles 4 4 4
Tool change auto auto auto
Tool interface HSK E32 HSK E32 HSK E40
Tool clamping force(nmax) 5,000 5,000 6,800
option × Center hole (rear rotary joint) oil-mist system
Cooling system water / oil water / oil water / oil
Bearing lubrication grease grease oil-mist
Weight(kg) 15 22 22

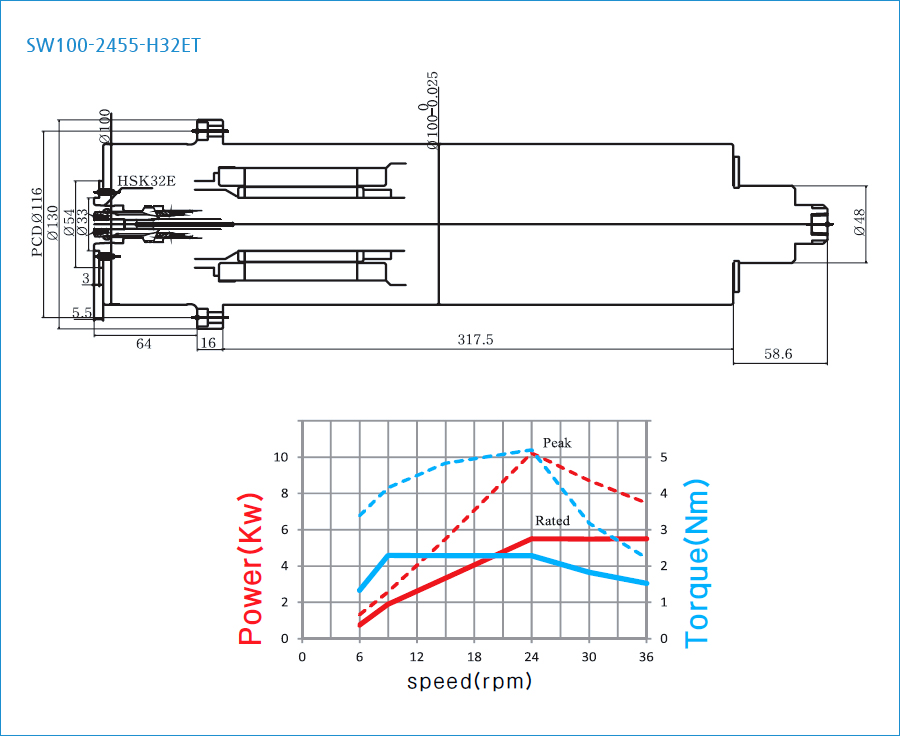

Floor plan
