| 구 분 |
SW120-1514-SO |
SW120-3010-SO |
SW120-3018-SO |

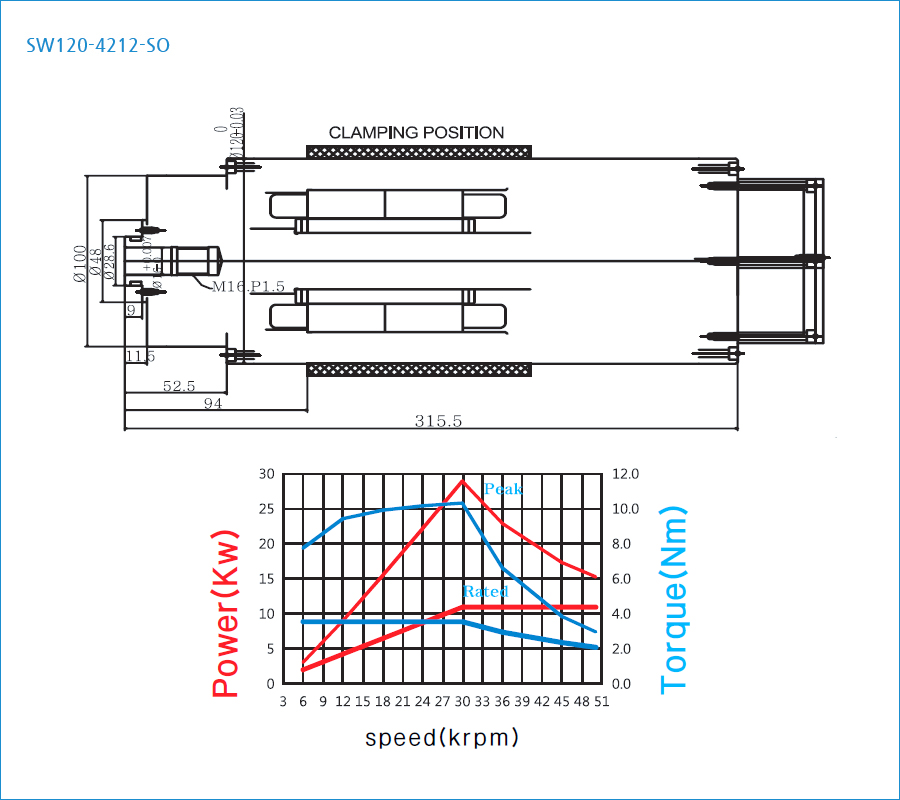

SW120-4212-SO |
| Housing diameter(Ø) |
120 |
120 |
120 |
120 |
| Housing material |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
| Power(S1)kw |
14(S6) |
10 |
18(S6) |
12(S6) |
| Speed(rpm) |
15,000 |
30,000 |
30,000 |
42,000 |
| Frequency(Hz) |
500 |
1,000 |
1,000 |
1,400 |
| Torque(Nm) |
6.9 |
3.2 |
4.9 |
2.5 |
| Current(A) |
43 |
34 |
52 |
40 |
| Motor poles |
4 |
4 |
4 |
4 |
| Tool change |
manual |
manual |
manual |
manual |
| Tool interface |
straight |
straight |
straight |
straight |
| option |
oil-mist system |
oil-mist system |
oil-mist system |
oil-mist system |
| Cooling system |
water / oil |
water / oil |
water / oil |
water / oil |
| Bearing lubrication |
oil-mist |
oil-mist |
oil-mist |
oil-mist |
| Weight(kg) |
22 |
22 |
22 |
22 |
|
