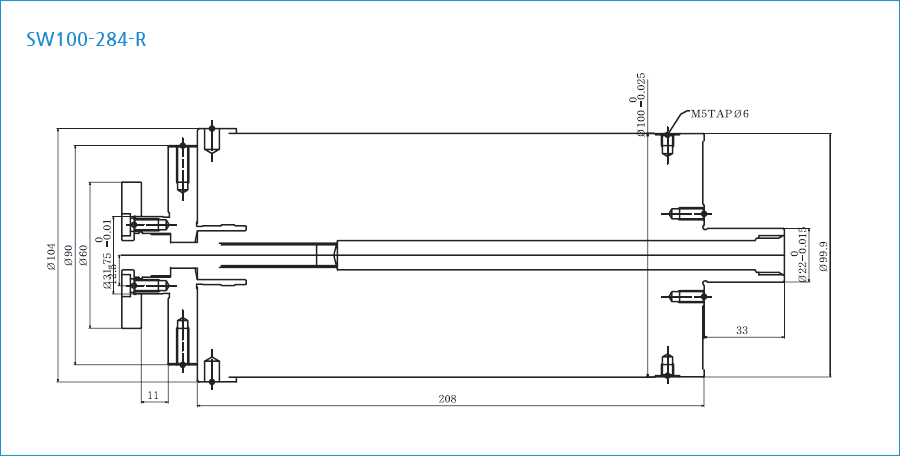

SW100-284-R 본문 SW100-284-R 황삭 (rough grinding) SW110-WH 워크헤드C40 (work head C40) SW120-8014-F 정삭 (finish grinding) SW180-6085-R 황삭모터 (rough grinding motor) 사양 구 분 SW100-284-R SW110-WH SW120-8014-F SW180-6085-R Housing diameter(Ø) 100 110 120 180 Housing material Stainless steel Stainless steel Stainless steel Stainless steel Power(S1)kw 1.4 8.5 Speed(rpm) 6,000 5,000 8,000 6,000 Frequency(Hz) 267 200 Torque(Nm) 1.7 14.1 Current(A) 4.1 20 Motor poles 4 4 Tool change manual manual manual manual Tool interface straight MT5 straight straight option × hydrauric (chuck jig) × × Cooling system × × × water Bearing lubrication grease grease grease grease Weight(kg) 도면 목록
