| 구 분 |

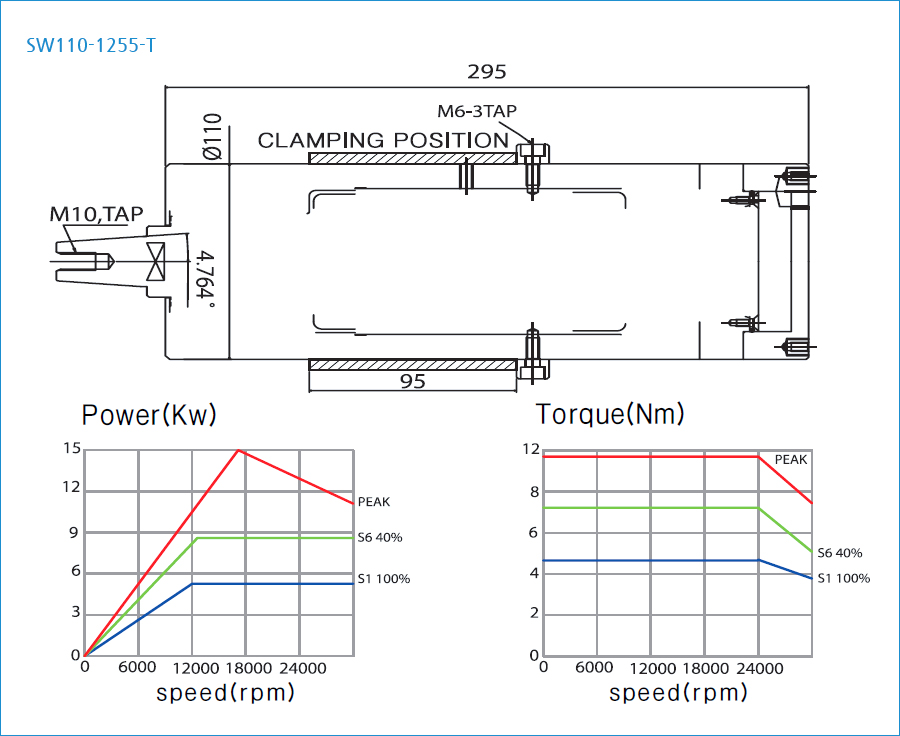

SW110-1255-T |
SW110-1255-TT |
SW110-1207-T |
| Housing diameter(Ø) |
110 |
110 |
110 |
| Housing material |
Stainless steel |
Stainless steel |
Stainless steel |
| Power(S1)kw |
5.5 |
5.5 |
7 |
| Speed(rpm) |
12,000 |
12,000 |
12,000 |
| Frequency(Hz) |
400 |
400 |
400 |
| Torque(Nm) |
4.5 |
4.5 |
5.7 |
| Current(A) |
26.26 |
26.26 |
33 |
| Motor poles |
4 |
4 |
4 |
| Tool change |
manual |
manual |
manual |
| Tool interface |
taper |
taper |
taper |
| option |
× |
front and rear rotary joint |
|
| Cooling system |
water / oil |
water / oil |
water / oil |
| Bearing lubrication |
grease |
grease |
grease |
| Weight(kg) |
18 |
20 |
18 |
|
