| 구 분 |
SW60-1507-T |

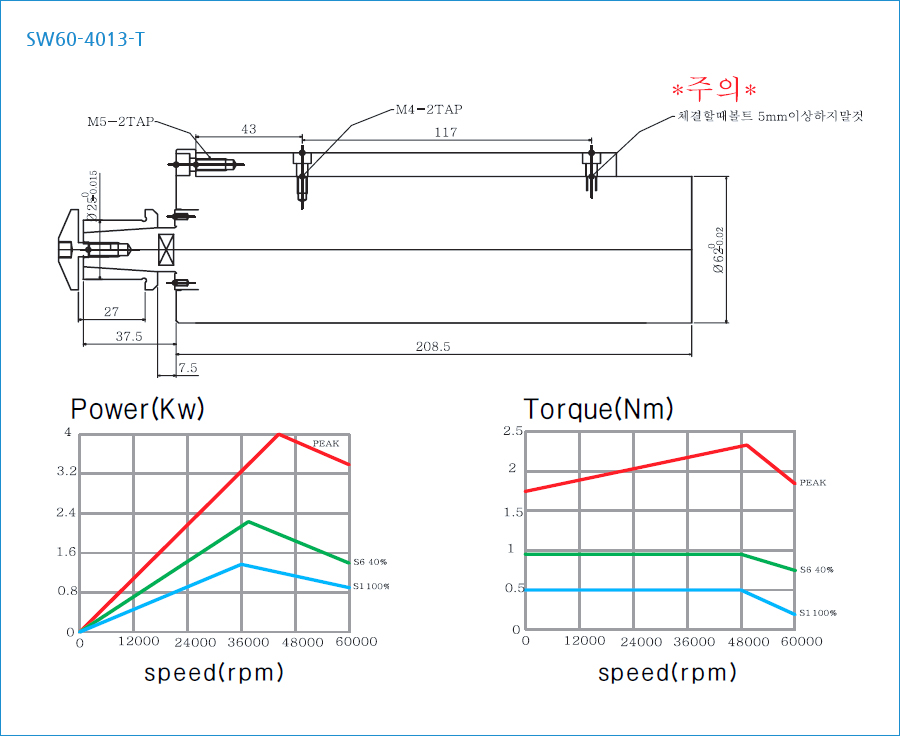

SW60-4013-T |
SW60-3001-S | SW60-3005-S |
| Housing diameter(Ø) |
60 |
60 |
60 |
60 |
| Housing material |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
| Power(S1)kw |
0.7(S6) |
1.3 |
1 |
0.5 |
| Speed(rpm) |
15,000 |
40,000 |
30,000 |
30,000 |
| Frequency(Hz) |
250 |
666 |
500 |
500 |
| Torque(Nm) |
0.3 |
0.32 |
0.31 |
0.41 |
| Current(A) |
3.6 |
2.4 |
5.1 |
3 |
| Motor poles |
2 |
2 |
2 |
2 |
| Tool change |
manual |
manual |
manual |
manual |
| Tool interface |
taper |
taper |
straight |
straight |
| option |
× |
× |
× |
× |
| Cooling system |
water / oil |
water / oil |
water / oil |
water / oil |
| Bearing lubrication |
grease |
grease |
grease |
grease |
| Weight(kg) |
4 |
4 |
3.5 |
3.5 |
|
