| 구 분 |
SW170-1225-BT40T |
SW170-2415-B40ECO |

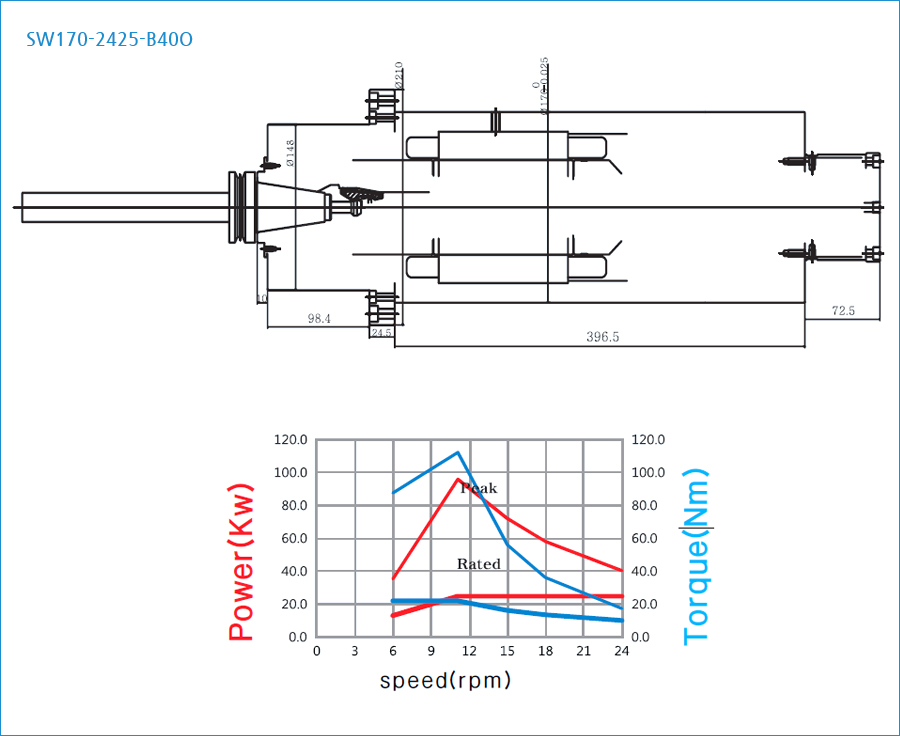

SW170-2425-B40O |
| Housing diameter(Ø) |
170 |
170 |
170 |
| Housing material |
Stainless steel |
Stainless steel |
Stainless steel |
| Power(S1)kw |
25 |
15(S6) |
25 |
| Speed(rpm) |
12,000 |
24,000 |
24,000 |
| Frequency(Hz) |
400 |
800 |
800 |
| Torque(Nm) |
19.8 |
21.6 |
22 |
| Current(A) |
48 |
60 |
62 |
| Motor poles |
4 |
4 |
4 |
| Tool change |
auto |
auto |
auto |
| Tool interface |
BT 40 |
BT40 |
BT40 |
| Tool clamping force(nmax) |
|
12,000 |
12,000 |
| option |
Center hole (rear rotary joint) |
Encoder, oil-mist system |
oil-mist system |
| Cooling system |
water |
water / oil |
water / oil |
| Bearing lubrication |
grease |
oil-mist |
oil-mist |
| Weight(kg) |
68 |
68 |
68 |
|
